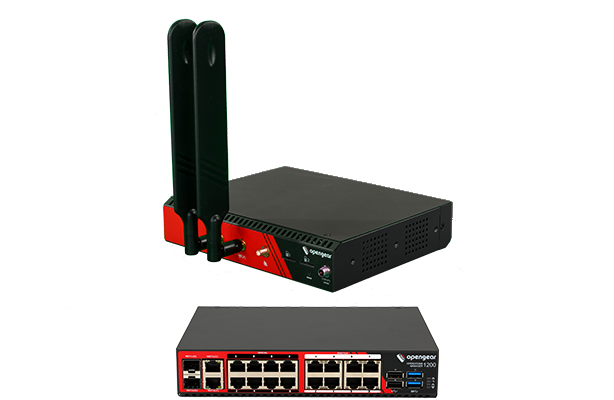

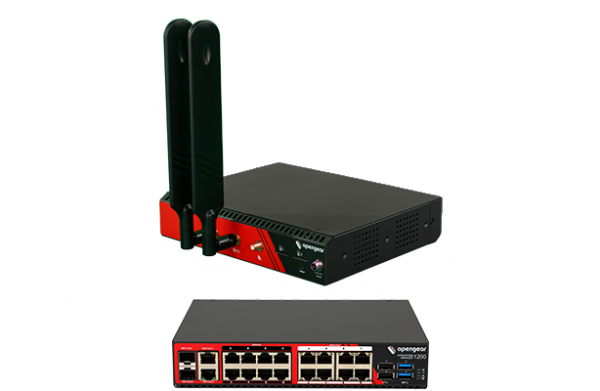

The compact OM1200 appliance is designed specifically for secure edge deployments, used in combination with Lighthouse Software. Combining the secure access of Smart OOB™ with the flexibility of automation tools, it provides the presence and proximity at every location that supports emerging requirements in Network Management and Automation.
- 4 Serial, 8 Serial, and 8 Serial/8 Ethernet port combinations
- x86 platform supporting Docker and Python, to automate NetOps processes
- Smart OOB includes automated port discovery and VLAN support on the OM appliances
- Cellular access with a Global LTE-A Pro module (optional)
All Models:
All serial ports are Cisco straight X2 pinout serial ports(50 to 230,400 bps)
2 x USB 2.0 ports for device console management
2 x USB 3.0 Host Ports for storage
2 x 10/100/1000 Ethernet
OM1208-8E – 8 x RJ45 RS-232 Serial Ports plus 8 Port Ethernet Switch, SFP Fiber port
OM1208-4 – 4 x RJ45 RS-232 Serial Ports plus 4 Port Ethernet Switch, SFP Fiber port
Power:
110-240V AC to 12V DC external power adapter
Power consumption for serial models less than 25W
Dimensions and Weight:
8 5/8 x 6 5/8 x 1 5/8 in – 2.2 lbs
22 x 17 x 4.2 cm – 1 kg
Environmental:
Ambient Operating Temperature: 5°C to 50°C, 41°F to 122°F
Storage Temperature: -40°C to +75°C, -40°F to +167°F
Emissions:
EN 55022:2010, CISPR 22:2008, FCC Part 15 Subpart B:2015,
ICES-003 Issue 5 (2014), AS/NZS CISPR 22:2009+A1:2010,
Immunity:
EN 55024:2010, CISPR 24:2010,
EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010,
EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004
Memory & CPU:
AMD GX-412TC 1.4 Ghz 4-core 64-bit x86
4 GB DDR3 RAM
16 GB SSD internal
MTBF:
100,000 hours
Security and Authentication:
Trusted Platform Module 2.0
AAA – TACACS+
SSH
Embedded Firewall
OpenVPN – Lighthouse Connection
Cellular Specifications for: OM12xx-L
SIM Slot: Dual Push Click 2FF SIM slots
Modem Device: These models utilize the Sierra Wireless EM7565. This a global cellular module ceritfied CE, FCC, GCF, IC, JRF/JPA, NCC, PTCRB
Connectors: 2 x SMA connectors for cellular with diversity and 1 x SMA connector for GPS
Air Interface: LTE-A Pro (LTE-LAA), HSPA+
Frequency Bands: 4G LTE B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66 3G HSPA+ B1, B2, B4, B5, B6, B8, B9, B19
Data Services: Transfer rate (peak): Download 600 Mbps/Upload 150 Mbps CAT-12
